ENLIGHTEN's plug-in architecture is designed to allow end-users to write simple Python modules that can be dynamically loaded by ENLIGHTEN and run directly during spectral processing. This allows users to manipulate spectra any way they wish, including seeing their processed spectra appear on the graph alongside (or instead of) ENLIGHTEN's own.

Python is a powerful data-processing language, and plug-ins are free to use popular mathematical libraries and frameworks, including Numpy, Pandas, SciPy and Tensorflow. In fact, Pandas dataframes may be output and displayed directly on the ENLIGHTEN GUI.

Quick Start

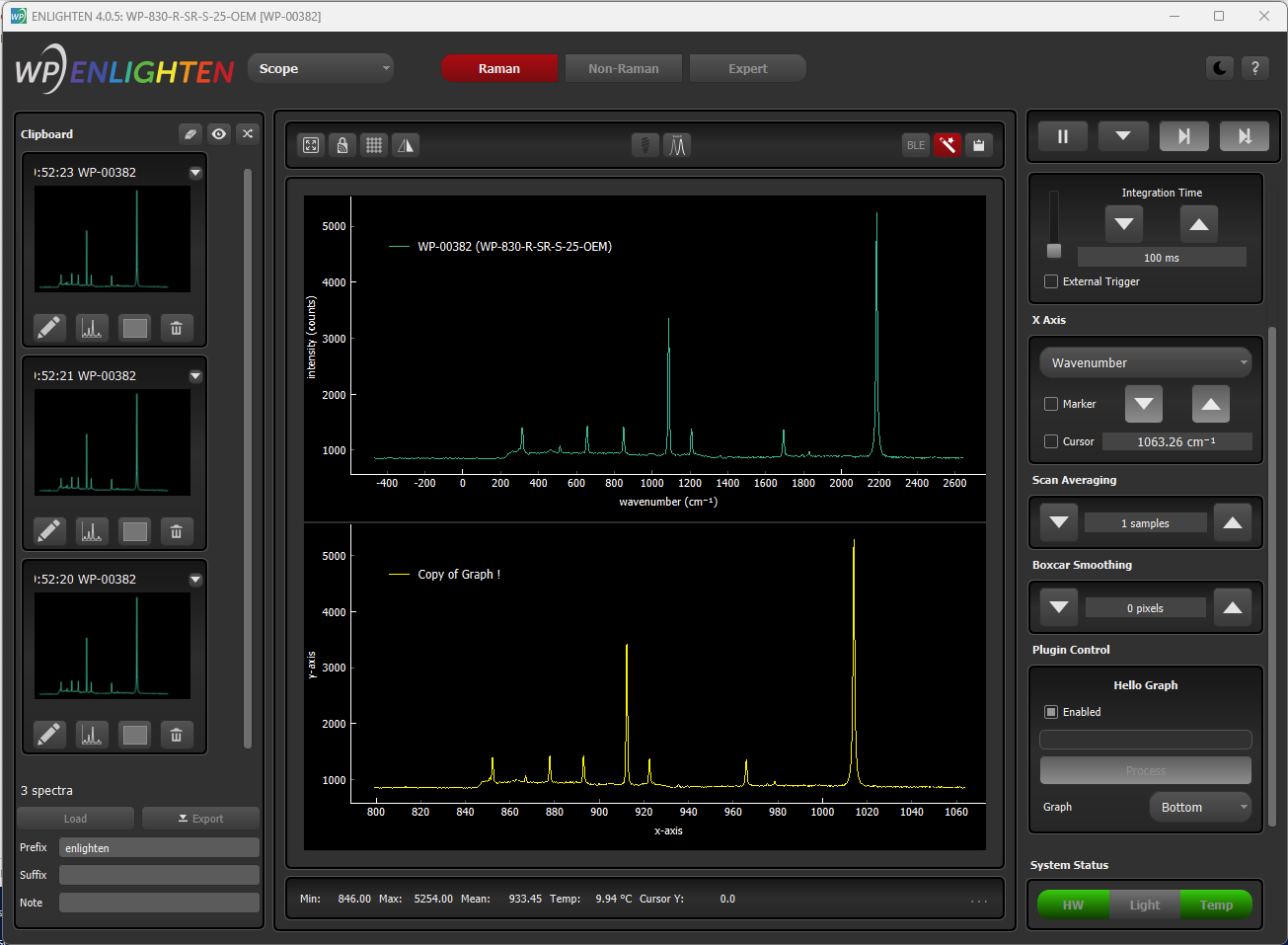

Screenshot of Hello Graph plugin. Shows a duplicate of the main scope graph.

from EnlightenPlugin import *

class hello_graph(EnlightenPluginBase):

    def get_configuration(self):
        self.name = "Hello Graph",
        self.has_other_graph = True,
        self.series_names = self.my_series.keys(),
        self.x_axis_label = "x-axis",
        self.y_axis_label = "y-axis",

    def process_request(self, request):
        x_values = self.get_axis()
        y_values = request.processed_reading.get_processed()
        self.plot(x=x_values, y=y_values, title="Copy of Graph !", color="yellow")

Advanced use

See EnlightenPlugin.py for more information about these functions and parameters.

inline parameters

self.name
self.streaming
self.is_blocking
self.blocks_enlighten
self.has_other_graph
self.table
self.x_axis_label
self.y_axis_label

API functions

field
get_widget_from_name
plot

helper functions

get_axis
to_pixel
wavelength_to_pixel
wavenumber_to_pixel
area_under_curve

More Information

There are two sides to our plug-in architecture:

"external" (for ENLIGHTEN users and plug-in authors)
"internal" (for ENLIGHTEN developers and maintainers)

External

Classes of interest to plug-in authors are in the EnlightenPlugin module, especially:

EnlightenPlugin.EnlightenPluginBase

EnlightenPlugin is a single Python file stored in plugins in the source distribution, and installed to EnlightenSpectra/plugins on Windows.

Internal

The internal plug-in architecture is implemented in the enlighten.Plugins namespace, especially:

Some of the external symbols are now handled internally.

Backlog

Documentation

ENLIGHTEN Plugin Developer's Guide
ENLIGHTEN Plugin Cookbook ("I'd like to...")
- add a new series to the main graph
- add a new series on the secondary graph
- modify the standard graph series on-screen
- modify the standard graph series such that it is saved to disk and clipboard
- save spectra in a custom format
- load spectra from a custom format
- send spectra to another program
- send spectra to another program for processing, then display the result in ENLIGHTEN
- process the spectrum in R
- ...?

Desired Plugins

Measurements.DataManager
- merge a bunch of individual CSV into a single export file
- split an export file into individual CSV
- convert existing files (for instance between row/column CSV, JCAMP-DX, GRAMS SPC etc)
- extract columns from existing export (e.g., "just Processed columns where label is Acetaminophen")
Network.SaveToCloud
Network.QueryCloud

Desired Plugin Features

should probably let the "Save" button save measurements graphed on the Plugin "other graph" (.csv and thumbnails), and let thumbnails be added as traces
for every graph series (not on other_graph), add "[x] (color) name"

R

It would be nice to use rpy2 to be able to run R functions directly, rather than "shelling-out". We should be able to generate a sample rpy2 plugin NOW, since:

we're now 64-bit native (yay)
rpy2 now supports Python 3.9 and 3.10
